Testing diesel generators 500kw 400v 50hz3 Phasse 4 Wire resistive reactive load bank

Testing diesel generators 500kw 400v 50hz3 Phasse 4 Wire resistive reactive load bank
Testing diesel generators 500kw 400v 50hz3 Phasse 4 Wire resistive reactive load bank Testing diesel generators 500kw 400v 50hz3 Phasse 4 Wire resistive reactive load bank Testing diesel generators 500kw 400v 50hz3 Phasse 4 Wire resistive reactive load bank Testing diesel generators 500kw 400v 50hz3 Phasse 4 Wire resistive reactive load bank Testing diesel generators 500kw 400v 50hz3 Phasse 4 Wire resistive reactive load bank Testing diesel generators 500kw 400v 50hz3 Phasse 4 Wire resistive reactive load bank

Grande immagine :  Testing diesel generators 500kw 400v 50hz3 Phasse 4 Wire resistive reactive load bank

Dettagli:
Luogo di origine: Cina
Marca: Kingway
Numero di modello: KL500
Termini di pagamento e spedizione:
Quantità di ordine minimo: 5 unità
Prezzo: $14,260.00/units >=5 units

Testing diesel generators 500kw 400v 50hz3 Phasse 4 Wire resistive reactive load bank

descrizione
Tipo: Resistenza Classe di precisione: 1kw
Fattore di potenza: 1.0 Carico resistivo: 8 passaggi
Potenza di resistenza: 500 kW/500kva Potere apparente: 500 CHILOWATT
Interfaccia di comunicazione: RS232/RS485 Contattore: Schneider
fusibile: MIRO PLC: Sciemens
Ally Resistor: C'è un'altra cosa. Software dell'elaborazione dei dati: C'è un'altra cosa.
Garanzia: 3 mesi-1 anno Personalizzato: - Sì, sì.

Digital AC Portable Resistive Three-Phase Load Banks

Lead times are currently less than 3 months!

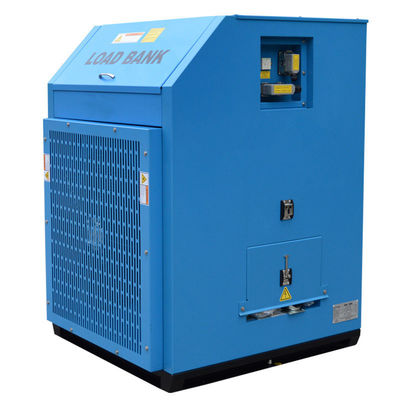

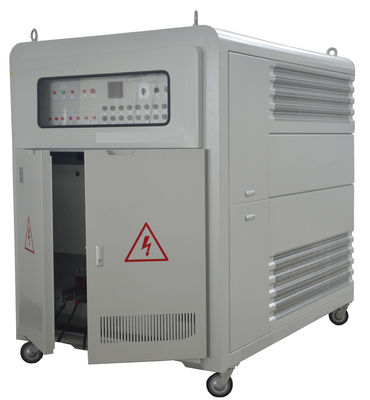

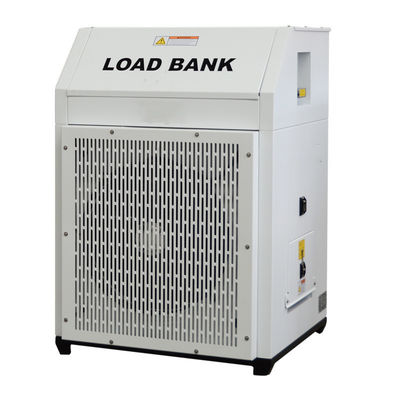

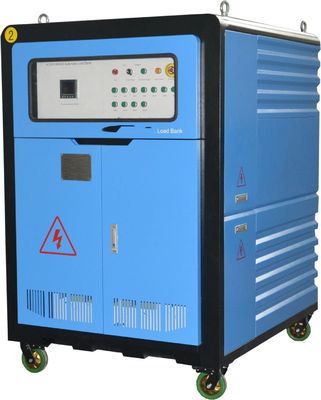

Three-phase model options range from small, portable, low-power units, to high-power, indoor & outdoor permanent resistive load banks. Models come standard with push-button manual controls as well as PC software controls offering advanced load profile solutions for working with complex testing applications.  Units are suitable for various uses including testing of generators, UPS systems, data center power systems, power supplies, HVAC systems, and other critical power sources. Single-phase load bank models also available.

Design elements incorporate a robust steel outer chassis with isolated interior chambers for control and load elements. This ensures electrical components are kept away from dirt and debris for long-life reliability in harsh test environments. Portable options include lifting eyes and caster wheels while permanent and outdoor rated units are available. All resistive load banks come with multiple built-in automatic safety shutdowns and manual override shutdown.

Benefits

  • Digital metering for high-precision data read-out
  • User controlled manually or through software with programmed load profile

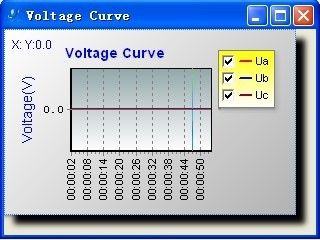

  • Detailed data management, analysis, and report generation through software
  • Automatic load testing allows user to set custom periods of power and time
  • Display of current, voltage, power, power factor, frequency, and time

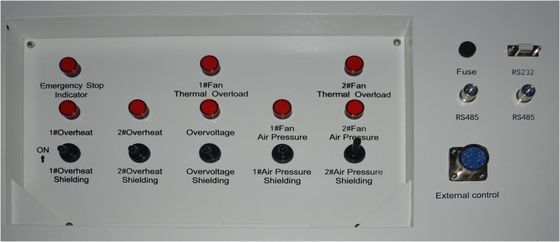

  • Emergency manual stop button for quick termination of load test
  • Automatic stop protection for adverse conditions including over-load, over-voltage, high temperature, short-circuit
  • Optional serial RS-485 Modbus controls
  • Optional dry contact terminal controls
  • Optional outdoor rated enclosures (available on models over 100kw)

Voltage Versions

 240, 400, 480  VAC

kW Models

1,2,2,5,10, 10,20,50,100 kW

Frequency

50/60 Hz

Resolution

1 kW

Configuration

Three Phase, 4 Wire Wye or 3 Wire Delta connection available

Testing diesel generators 500kw 400v 50hz3 Phasse 4 Wire resistive reactive load bank 0
